Bind Angular Js With model,Binder and expression with Visual studio 2015

In this article we learn about modules ,components and expression in Angularjs.

AngularJS is a JavaScript-based open-source front-end web application framework mainly maintained by Google

In this article ,we will learn how to startup project in angularJs. So firstly install Visual studio 2015 ,Typescript and NPM(Node package manager)

What is the main role of Angular.

Main role of angular is binding framework.It bind java-script interfaces with User interfaces.

Step 1.Create Angular application.
1. Let's "Start", then "All Programs" and select "Microsoft Visual Studio 2015".
2. Lets "File", then "New" and click "Project", then select "ASP.NET Web Application Template" and provide the Project a name as you wish and click on OK.
3. Let's Choose Empty  application option and click OK

Step2. Now Solution directory application has been created.Now i going to create own custom folder So I have created three new folder name:

1. UI
2. Model
3. Binder

 Step 3: Let's add Html file in UI folder. So i have created Customer.html file See below pictorial code:

Customer.html
<div>
    <!--Customer Name object to UI:-<input [ngModel]="customerobj.CustomerName" id="Text1" type="text" /><br />
    Customer Name UI to the object:-<input (input)="customerobj.CustomerName=$event.target.value" id="Text1" type="text" /><br />
    Customer Name 2 way :-<input [ngModel]="customerobj.CustomerName" (input)="customerobj.CustomerName=$event.target.value" id="Text1" type="text" /><br />-->
    Customer Name  :-<input [(ngModel)]="currentCustomer.CustomerName" id="Text1" type="text" /><br />
    Customer Code :-<input [(ngModel)]="currentCustomer.CustomerCode" id="Text1" type="text" /><br />
    Customer Amount :-<input [(ngModel)]="currentCustomer.CustomerAmount" id="Text1" type="text" /><br />
    <input type="button" (click)="Add()"  value="Add Customer"/>
    <input type="button" (click)="Update()" value="Update Customer" />
    <input type="button" (click)="Clear()" value="Cancel" />
    <b>{{currentCustomer.CustomerName}}</b><br />
    {{currentCustomer.CustomerCode}}<br />
    {{currentCustomer.CustomerAmount}}<br />
    <table>
        <tr>
            <td>Name</td>
            <td>Code</td>
            <td>Amount</td>
        </tr>
        <tr  *ngFor="let cust of customers">
            <td>{{cust.CustomerName}}</td>
            <td>{{cust.CustomerCode}}</td>
            <td>{{cust.CustomerAmount}}</td>
            <td><a href="#" (click)="Select(cust)">Select</a></td>
        </tr>
    </table>

</div>

Step4: Let's add class in model. We add typescript file in model class .We select Typescript file .I have put name is Customer.ts
Typescript nothing but super set of language for JavaScript. Internally Typescript compiles to JavaScript

export  class Customer {
    CustomerName: string = "";
    CustomerCode: string = "";
    CustomerAmount: number = 0;
}

Step 5: Now we need to add package.json,tsconfig.json,Typings.json and systemjs.config.js Got to the GitHub and Angular documentary URL then find it and add this.
I will provide this of all code that you can create project.Do'no worry.

package.json

{
  "name": "angular-quickstart",
  "version": "1.0.0",
  "scripts": {
    "start": "tsc && concurrently \"npm run tsc:w\" \"npm run lite\" ",
    "lite": "lite-server",
    "postinstall": "typings install",
    "tsc": "tsc",
    "tsc:w": "tsc -w",
    "typings": "typings"
  },
  "license": "ISC",
  "dependencies": {
    "@angular/common": "2.0.0",
    "@angular/compiler": "2.0.0",
    "@angular/core": "2.0.0",
    "@angular/forms": "2.0.0",
    "@angular/http": "2.0.0",
    "@angular/platform-browser": "2.0.0",
    "@angular/platform-browser-dynamic": "2.0.0",
    "@angular/router": "3.0.0",
    "@angular/upgrade": "2.0.0",
    "core-js": "^2.4.1",
    "reflect-metadata": "^0.1.3",
    "rxjs": "5.0.0-beta.12",
    "systemjs": "0.19.27",
    "zone.js": "^0.6.23",
    "angular2-in-memory-web-api": "0.0.20",
    "bootstrap": "^3.3.6"
  },
  "devDependencies": {
    "concurrently": "^2.2.0",
    "lite-server": "^2.2.2",
    "typescript": "^2.0.2",
    "typings": "^1.3.2"
  }

}

===================================================================

tsconfig.json

{
  "compilerOptions": {
    "target": "es5",
    "lib": ["es2015"],
    "outDir": "dist",
    "rootDir": "src",
    "module": "commonjs",
    "declaration": true,
    "noImplicitAny": true,
    "removeComments": true,
    "sourceMap": true
  }

}

Typings.json

{
  "globalDependencies": {
    "core-js": "registry:dt/core-js#0.0.0+20160725163759",
    "jasmine": "registry:dt/jasmine#2.2.0+20160621224255",
    "node": "registry:dt/node#6.0.0+20160909174046"
  }

}

=======================================================

Sytemsjs.config.js

/**
 * System configuration for Angular samples
 * Adjust as necessary for your application needs.
 */
(function (global) {
    System.config({
        paths: {
            // paths serve as alias
            'npm:': '../node_modules/'
        },
        // map tells the System loader where to look for things
        map: {
            // our app is within the app folder
            app: 'startup',
            // angular bundles
            '@angular/core': 'npm:@angular/core/bundles/core.umd.js',
            '@angular/common': 'npm:@angular/common/bundles/common.umd.js',
            '@angular/compiler': 'npm:@angular/compiler/bundles/compiler.umd.js',
            '@angular/platform-browser': 'npm:@angular/platform-browser/bundles/platform-browser.umd.js',
            '@angular/platform-browser-dynamic': 'npm:@angular/platform-browser-dynamic/bundles/platform-browser-dynamic.umd.js',
            '@angular/http': 'npm:@angular/http/bundles/http.umd.js',
            '@angular/router': 'npm:@angular/router/bundles/router.umd.js',
            '@angular/forms': 'npm:@angular/forms/bundles/forms.umd.js',
            // other libraries
            'rxjs': 'npm:rxjs',
            'angular2-in-memory-web-api': 'npm:angular2-in-memory-web-api',
        },
        // packages tells the System loader how to load when no filename and/or no extension
        packages: {
            app: {
                main: '../../Binder/Startup.js',
                defaultExtension: 'js'
            },
            rxjs: {
                defaultExtension: 'js'
            },
            'angular2-in-memory-web-api': {
                main: './index.js',
                defaultExtension: 'js'
            }
        }
    });

})(this);

======================================================================

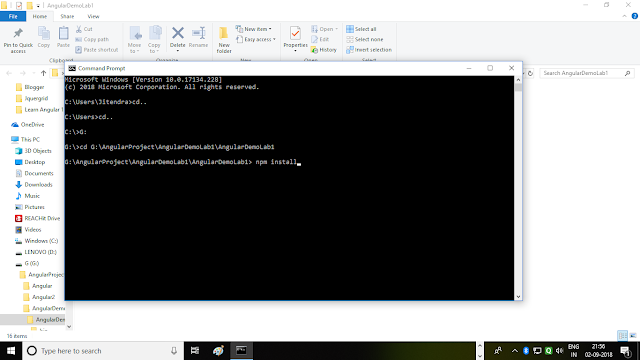

Step 6. Now go to the project open file explorer .Then copy the Project directory path Then Go to the command prompt and paste the project path then enter with npm install command.
It install all necessary JavaScript file we have needed See the below pictorial code
all needed files has been installed in our project directory with node_modules name.

Step 7: Now refresh or project files select show all files. then Exclude package.json and typings.json file because it has already installed our project.
One important thing that never go to include node_modules file in project. It will be exists but never included.

Step 8 Now select Binder folder add Typescript file then put name CustomerComponent. Actually Binder works like as Middlelayer which connect to business logic and user-interfaces..

CustomerComponent.ts

import {Component} from "@angular/core"
import {Customer} from "../Model/Customer"

@Component({
    selector: "customer-ui",
    templateUrl : "Customer.html"
})
export class CustomerComponent {
    // binding logic
    currentCustomer: Customer = new Customer();
    // customer collection
    customers: Array<Customer> = new Array<Customer>();
    Select(custselected: Customer) {
        this.currentCustomer = Object.assign({}, custselected);;
    }
    Clear() {
        this.currentCustomer = new Customer();
    }
    Update() {
        for (let cust of this.customers) {
            if (cust.CustomerCode == this.currentCustomer.CustomerCode) {
                cust.CustomerName = this.currentCustomer.CustomerName;
                cust.CustomerAmount = this.currentCustomer.CustomerAmount;
            }
        }
        this.currentCustomer = new Customer();
    }
    Add() {
        this.customers.push(this.currentCustomer);
        this.currentCustomer = new Customer();
    }

}


Step 9 . Now Add CustomerModuleLibrary typescript file. What will be do this?? This will be bind all component within single library.

CustomerModuleLibrary.ts

import { NgModule }      from '@angular/core';
import { BrowserModule } from '@angular/platform-browser';
import { CustomerComponent }   from './CustomerComponent';
import {FormsModule} from "@angular/forms"

@NgModule({
    imports: [BrowserModule,FormsModule],
    declarations: [CustomerComponent],
    bootstrap: [CustomerComponent]
})

export class CustomerModuleLibrary { }

Step 10 .Now let starts to add new Startup.ts file what will be do?? It will be load the modules and starts this.
startup.ts

import { platformBrowserDynamic } from '@angular/platform-browser-dynamic';
import { CustomerModuleLibrary } from '../Binder/CustomerModuleLibrary';
const platform = platformBrowserDynamic();

platform.bootstrapModule(CustomerModuleLibrary);

==================================================================
Master.html

<!DOCTYPE html>
<html>
<head>
    <title></title>
<meta charset="utf-8" />
</head>
 <!-- 1. Load libraries -->
<!-- Polyfill(s) for older browsers -->
<script src="../../node_modules/core-js/client/shim.min.js"></script>
<script src="../../node_modules/zone.js/dist/zone.js"></script>
<script src="../../node_modules/reflect-metadata/Reflect.js"></script>
<script src="../../node_modules/systemjs/dist/system.src.js"></script>
<!-- 2. Configure SystemJS -->
<script src="../systemjs.config.js"></script>
<script>
    System.config({
        "defaultJSExtensions": true
    });

    System.import('startup').catch(function (err) { console.error(err); });
</script>
<body>
    DotnetTricks Guru ,
    <customer-ui></customer-ui>
</body>
</html>

Step 11 .Then set the  the master page as start--up and run it.
Out  Put
